The Stratasys F370
3D Printer
Highest capability and largest build size
Create complex, durable parts for prototyping applications as well as manufacturing jigs, fixtures and tools
Click to read moreStratasys F370 Features:
- 356 x 254 x 356 mm -build envelope (36% bigger than F270)
- 4 materials ABS, PLA, ASA & PC-ABS
- GrabCAD Print
- 4 slice heights
- 4 material bays
- Auto material change-over
- Stratasys Insight Sofware
Why Stratasys F370
User - Friendly & Office Friendly
Smarter Software
Versatility & Performance
More Efficiency
Exceptional Value
Talk to an expert about Stratasys F370
Contact UsWhy Choosing The Right 3D Printer Reseller Is Important To Getting It Right?
Compatible Materials
The material versatility of F123 Series printers opens up multiple applications. Being a professional carbon fiber 3D printer, use it to create strong but light manufacturing tools, jigs and fixtures. Print and verify more quickly for faster prototyping. Prepare students to be the skilled workforce of tomorrow by putting 3D printing in the classroom today.
Stratasys F370 Materials:
PLA2
ABS-ESD7™
ABS-M30
ASA
DIRAN™ 410MF072
FDM TPU 92A
PC-ABS
ABS-CF10
QSR Support material
- 355 x 254 x 355 mm
- PLA
- ABS-M30™
- ASA
- PC-ABS
- QSR support material
- PLA (0.254mm)
- ABS
- ASA & PC-ABS (0.330mm-0.127mm)
- Parts are produced within an accuracy of +/- .200 mm, or +/- .002 mm/mm, whichever is greater.
- Stratasys F370 = 4 material spool bays, 2 for model, 2 for support located in a drawer on the front of the unit
- Wired: TCP/IP protocols at 100 Mbps minimum 100 base T, Ethernet protocol, RJ45 connector
- Wireless:IEEE 802.11n, g, or b; Authentication: WPA2-PSK, 802.1x EAP; Encryption: CCMP, TKIP
- 1626 x 864 x 711 mm
- 227 kg with consumables
- 100–132V/15A
- 200–240V/7A
- 50/60 Hz
- CE
- FCC
- EAC
- EMC (low-voltage directive)
- TUV
- FCC
- RC
- RCM
- RoHs
- WEEE
- Reach
GrabCAD Print (download): Stratasys F170, F270 and F370
Insight software license
- Large build size options, up to 14 x 10 x 14 in / 355 x 254 x 355 mm (Stratasys F370 machine), with the ability to build large, dense parts successfully.
- You can simply plug and play to give your entire office access to professional 3D printing. Fast, easy material change-out, plus auto-calibration ensures you spend less time troubleshooting and more time prototyping.
- Ultra low noise level during building – under 46 dB, similar to a residential refrigerator. Fully enclosed system with auto-locking door for safety while building.
- The Stratasys F123 series gives the option of up to 8 different Fused Deposition Modeling materials (PLA, ABS-CF10, ABS-ESD7, ABS-M30, ASA, PC-ABS, TPU 92A, Diran) along with easy-to-remove soluble support material.
What Industries Are Using
The Stratasys F370
From Transportation to Prototyping to Retail

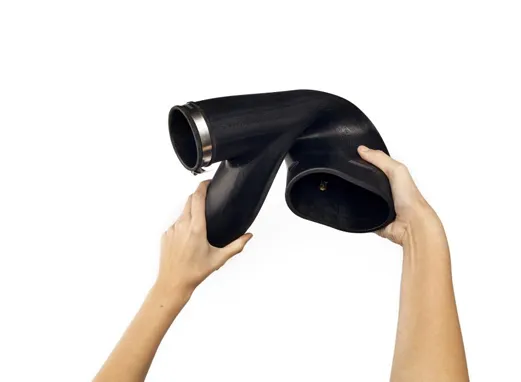

Transportation

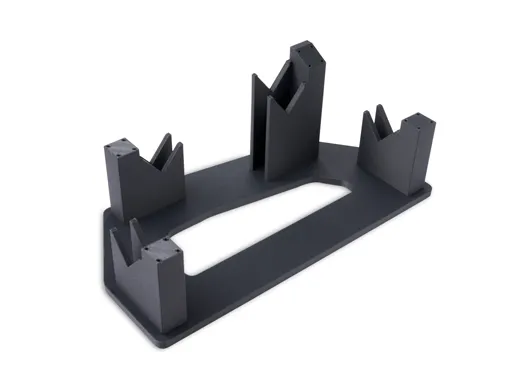

Industrial Equipment

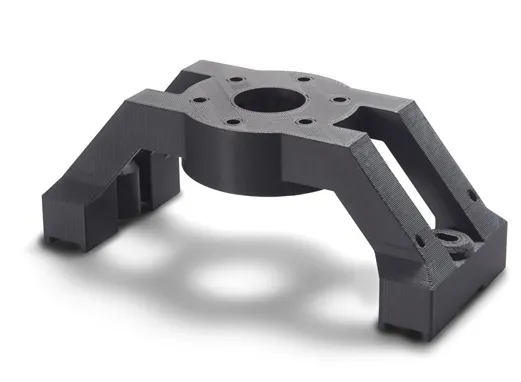

Service Bureaus and Machine Shops
Consumer Goods Industries
Transportation
Transportation
Industrial Equipment
Industrial Equipment
Service Bureaus and Machine Shops
Service Bureaus and Machine Shops
Consumer Goods Industries
Consumer Goods Industries
Smarter Software, Better Designs, Exceptional Printing
GrabCAD Print™ software simplifies the entire 3D printing process with an intuitive CAD-like application anyone on your team can use. And with features like detailed reporting and remote monitoring, you can easily manage your print jobs from outside the office. Combined with the ability to seamlessly share projects between users, it all adds up to a more streamlined, efficient workflow. Learn More
Resources
Case Study
Design Firm 3D Prints To Refine Ideas With Speed

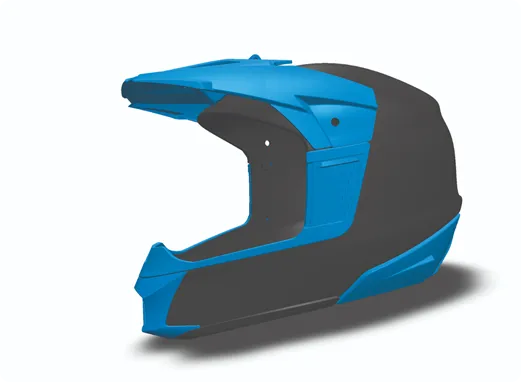

The all-in-one capabilities of the Stratasys F370 help CAD continuously improve product designs, like their popular motocross helmet. Feedback on a previous version prompted CAD to make design changes more in line with what riders want – a helmet that can accommodate a neck brace and a camera.
White Paper
How F370 Printers Make Rapid Prototyping More Accessible & Easier
This white paper will show there’s never been a better time to invest in 3D printing, a fact made possible by the introduction of the Stratasys F123™ 3D Printer Series. These 3D printers were designed to remove the barriers designers and engineers face by making the RP process more efficient and productive. You’ll see how the Stratasys F123 Series addresses typical rapid prototyping pain points and lets companies create better products faster, reducing the time to market
Get A Free Quote
Talk to an Expert
Our team of application and industry engineers are here to help. We can answer any questions you about range of materials, printing applications, or features of the printer. If we feel there is a more optimal solution that suits your requirements, we will recommend it.
Frequently Asked Questions
The Stratasys F170 comes with GrabCAD software for 3D file preparation and slicing.
The F370 is the flagship of this series in that it has a bigger build volume over the already generous F170, has four material bays (2X model and 2X support), and a wide range of material options.
Water-soluble support for easy, hands-free removal using a cleaning / bath system. The dissolvable FDM support material makes it possible to produce intricate and complex prototypes and models without the need for time-consuming manual support removal.
Desktop and low-priced 3D printers may seem like the logical choice to get started with 3D printing. But it’s often the wrong choice because these kinds of printers are typically not up to the task. Curious to know how F123 Series professional 3d printers stack up against these printers? Download the white paper to read the results.
