The New Stratasys J5 DentaJet

Load one tray and walk away

j5 denta jetHero banner img

The Stratasys J5 DentaJet 3D Printer

Compact and Powerful 3D Printing For Dental Labs

The J5 DentaJet™ may be small, but it’s a powerful tool for dental labs. Designed to reduce costs, maximize efficiency and create more dental parts with less handling — all with the precision, accuracy, and realism you can expect from Stratasys.

With a larger print tray to create more parts in a compact, lab-friendly environment, the DentaJet is like having three printers in one — print an implant case with a rigid opaque model with a soft gingiva mask and a biocompatible transparent surgical guide, or print an RPD framework in a castable material together with the patient model.

Click to read more

Stratasys J5 Dentajet Features:

J5 DentaJet


Why Stratasys J5 DentaJet

Increase Patient Acceptance icon

Increase Patient Acceptance

Show patients how their treatment will look before starting work using real life models.

Volume Production icon

Decrease Footprint Increase Productivity

Small enough to fit in small and medium sized labs but designed with a larger print tray to create more parts.

Harness the Power of Colour icon

Leverage Full Colour Printing

Differentiate your lab by printing models in over 500,000 colours, and communicate information with patients more effectively.

Quality icon

Unmatched Quality

Designed with a unique 360 degree print tray, to create more highly accurate parts, from different materials, in a single print tray.

Simplify Production icon

Simplify Production

Unattended operation, fewer change overs, less touch time to load and minimal processing reduces manual labour.

Talk to an expert about J5 Dentajet

Contact Us

Why Choosing The Right 3D Printer Reseller Is Important To Getting It Right?

J5 Dentajet compatible materials

Compatible Materials

Leverage full-color capability and realism to differentiate your lab. DentaJet offers over 500,000 colors and three biocompatible materials. In addition, the Separator Digital Material makes acrylic orthodontic devices, such as Hawley Retainers, separate easily from the printed model and results in better surface quality and decreased manual labor.

Stratasys J5 Dentajet Materials:

  • Biocompatible MED610
  • Biocompatible MED620
  • Biocompatible MED625FLX
  • Biocompatible Vero
    Biocompatible materials:
  • Biocompatible Clear MED610™
  • VeroGlaze™ (MED620)
  • Flexible clear biocompatible material MED625FLX™
  • VeroCyanV™ (RGD845)
  • VeroMagentaV™ (RGD852)
  • VeroYellowV™ (RGD838)
  • VeroDent™ PureWhite (DEN847)
  • Unlimited number of composite materials including:
  • Over 500,000 colors
  • Separator Digital Material
  • SUP711™ (Waterjet removable)
  • 140 x 200 x 190mm (5.51 x 7.87 x 7.48 in.)
  • Up to 1.174cm2
  • Horizontal build layers down to 18 microns (0.0007 in.)
  • LAN – TCP/IP
  • 651 x 661 x 1511mm (25.63 x 26.02 x 59.49 in.)
  • 228 kg (503 lbs.)
  • Temperature 18 – 25 °C (64 – 77 °F)
  • relative humidity 30 – 70% (non-condensing)
  • 100 – 240 VAC
  • 50 – 60 Hz
  • 10A
  • 1 phase
  • GrabCAD Print
  • High-Quality Speed (HQS) – 18.75µm
  • The large-capacity, 360 degree print tray allows for higher volume part production
  • The small footprint helps small- to mid-sized dental labs maximize productivity
  • Produces more dental parts with mixed materials in a single, mixed-tray print
  • Reduces the number of printers or steps you need to complete a job
  • Operates unattended, so you can load a tray and walk away
  • Requires fewer changeovers, less touch-time to load and minimal post-processing
  • The Separator Digital Material makes orthodontic devices separate easily from the printed model and results in better surface quality and decreased manual labour
  • Provides the same precision and realism expected of Stratasys PolyJet™ systems
  • Creates full-colour, mixed-material parts without sacrificing patient-specific accuracy

Dental And Orthodontics Labs Are Using
The J5 Dentajet

Implantology

Simplify the complexity of implantology and maximize production. Applications:

  • 3D Printed Implant models
  • 3D Printed Surgical guides
  • 3D Printed Gingiva masks
  • Print all on one tray.
J5 DentaJet - Dental and Orthodontics

Orthodontics

Cut days off delivery times and produce more orthodontic appliances. Orthodontics 3D Printing Applications:
  • Models
  • Indirect bonding trays
  • Simplify the production of acrylic orthodontic devices with Separator Digital Material which coats models making acrylic and wax removal easy.
J5 DentaJet Othodontics

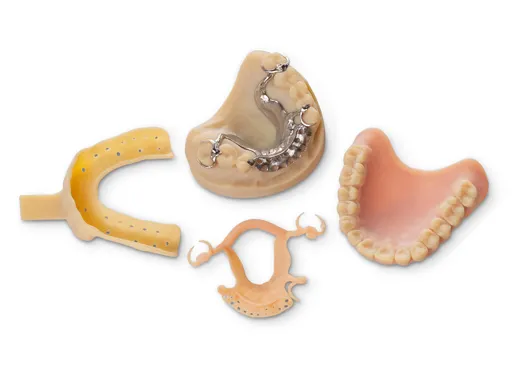

Removables

Reducing manual labor and increase production. Applications:
  • Models
  • RPD frameworks
  • Custom impression trays
  • Try-ins
  • Print all on one tray.
J5 DentaJet Removables

Crown and Bridge

Produce large volumes of models in high resolution materials. Applications:
  • Models — quadrant, full upper and lower with removable dies.
  • Eliminate delays and inaccuracies of manual labour.
J5 DentaJet - Crown and Bridge

Implantology

Simplify the complexity of implantology and maximize production. Applications:

  • 3D Printed Implant models
  • 3D Printed Surgical guides
  • 3D Printed Gingiva masks
  • Print all on one tray.
J5 DentaJet - Dental and Orthodontics

Orthodontics

Cut days off delivery times and produce more orthodontic appliances. Orthodontics 3D Printing Applications:
  • Models
  • Indirect bonding trays
  • Simplify the production of acrylic orthodontic devices with Separator Digital Material which coats models making acrylic and wax removal easy.
J5 DentaJet Othodontics

Removables

Reducing manual labor and increase production. Applications:
  • Models
  • RPD frameworks
  • Custom impression trays
  • Try-ins
  • Print all on one tray.
J5 DentaJet Removables

Crown and Bridge

Produce large volumes of models in high resolution materials. Applications:
  • Models — quadrant, full upper and lower with removable dies.
  • Eliminate delays and inaccuracies of manual labour.
J5 DentaJet - Crown and Bridge

Smarter Software, Better Designs, Exceptional Printing

grabcad

GrabCAD Print™ software simplifies the entire 3D printing process with an intuitive CAD-like application anyone on your team can use. And with features like detailed reporting and remote monitoring, you can easily manage your print jobs from outside the office. Combined with the ability to seamlessly share projects between users, it all adds up to a more streamlined, efficient workflow. Learn More

Resources

Case Study

NEO Lab increases accuracy and decreases manual labor with Separator Digital Materials (DM)

A 3D Printed Dental Solutions Case Study “The cool thing about the whole Separator DM process is that we were trying to fix one problem, which was to improve the finish on our appliances, and we actually fixed a lot of other problems.” Christian Saurman, CEO NEO Lab
J5 Dentajetresources img

Get A Free Quote

Talk to an Expert

Our team of application and industry engineers are here to help. We can answer any questions you about range of materials, printing applications, or features of the printer. If we feel there is a more optimal solution that suits your requirements, we will recommend it.
