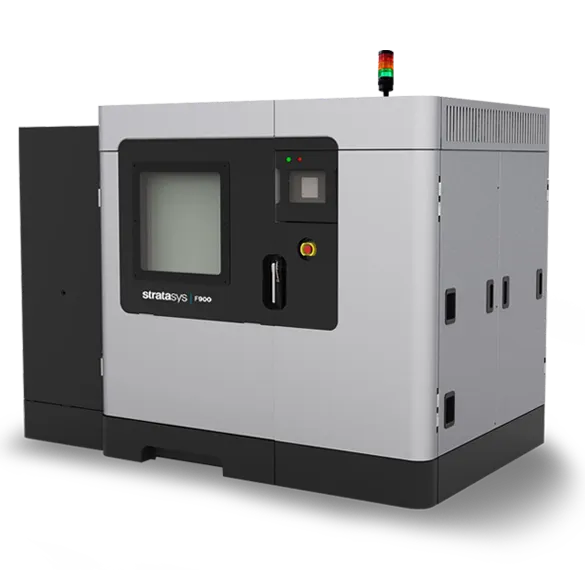

The Stratasys F900
3D Printer
The most powerful FDM system available.
The Stratasys F900 is the top-of-the-line 3D production system in the world. All the advantages of the Fortus family, but with a massive build envelope. In manufacturing and production, this is where the game really starts to change.
Click to read moreStratasys F900 Features:
- Part accuracy of +/- .089 mm or +/- .0015 mm per mm
- Build envelope - 914 x 610 x 914mm
- Software - GrabCAD print & Insight
- 14 materials to print with
Work Big
The Stratasys F900 3D Production System is built specifically for manufacturing and heavy industries, where you plan and work big. With the largest build size of any FDM system, it’s designed to handle the most demanding manufacturing needs.
Faster build time for large parts by adding the Acceleration Kit to your printing system and scale up production quickly.
Enhanced efficiency and visualization for your part designs by directly importing the most commonly used CAD file formats into GrabCAD Print.
Why Stratasys F900
Faster Build Time
For large parts by adding the Acceleration Kit to your printing system and scale up production quickly.
Enhanced Efficiency and Visualization
For your part designs by directly importing the most commonly used CAD file formats into GrabCAD Print.
Production Phase Optimisation
With Insight Software let's you change your designs on the fly, revise production materials, and more, all without delaying your overall production schedule.
Automated Production and Monitoring
Capability with MTConnect-readiness with remote internal cameras, dew point monitor, dual material bays and high-capacity material options.
Fewer Production System Breakdowns
Because the printing system is built with many of the same standard, engineering-grade and high-performance thermoplastics used in traditional manufacturing processes.
Talk to an expert about Stratasys F900
Contact UsWhy Choosing The Right 3D Printer Reseller Is Important To Getting It Right?
Compatible Materials
The Fortus 900mc builds parts in 12 production-grade engineering thermoplastics:
- ABS-ESD7 for static dissipation
- ABSi for translucence
- ABS-M30 for great tensile, impact and flexural strength and environmental stability
- ABS-M30i for biocompatibility
- ASA for UV stability, durability and great aesthetics
- FDM Nylon 12
- 2772 x 1683 x 2027 mm (109.1 x 66.3 x 78.1 in)
- 2869 kg (6325 lbs.)
- 2772 x 1683 x 2281 mm (109.1 x 66.3 x 89.8 in.)
- 914.4 x 609.6 x 914.4 mm (36 x 24 x 36 in)
- Platen supports two build zones for either small or large build sheets.
- 0.508 mm (0.020 in)
- ASA, ULTEM 1010 0.330 mm (0.013 in)
- ASA, ABS (M30, M30i), PC (all types), ULTEM (all types), FDM (all types), FDM Nylon 12CF, ST-130 0.254 mm (0.010 in)
- ASA, ABS (all types), PC (all types), ULTEM (all types), PPSF, FDM (all types) 0.178 mm (0.007 in)
- ASA, ABS (all types), PC (all types), FDM Nylon 12
- Parts are produced within an accuracy of +/- .089 mm or +/- .0015 mm per mm (+/- .0035 in. or +/-.0015 in. per in.), whichever is greater.
- AZ part accuracy includes an additional tolerance of +/- 0.000 mm slice height.
- The F900 offers the broadest selection of FDM materials, designed to meet a wide variety of applications. From standard ABS to carbon fiber to ESD-capable PEKK, the F900 has the material to match the challenge.
- MTConnect provides factory floor connectivity. ProtectAM safeguards sensitive printer data and enables information processing security, including U.S. DOD STIG compliance, enabled by Red Hat® Enterprise Linux® software.
- The F900 large print area 3d printer is trusted by industry leaders and government agencies because it’s a proven platform that delivers reliable and repeatable performance, an absolute requirement in any manufacturing operation.
What Industries Are Using
The Stratasys F900
From Aerospace to Automotive

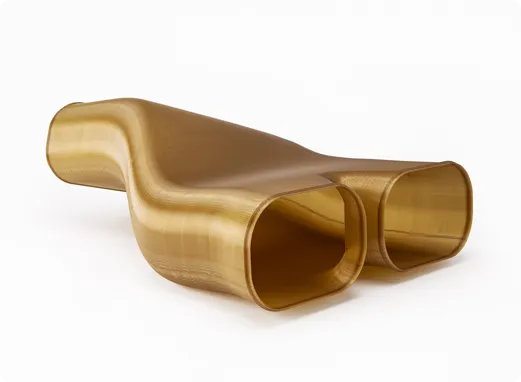

Aerospace and Space
Automotive
Aerospace and Space
Aerospace and Space
Automotive
Automotive
Smarter Software, Better Designs, Exceptional Printing
GrabCAD Print™ software simplifies the entire 3D printing process with an intuitive CAD-like application anyone on your team can use. And with features like detailed reporting and remote monitoring, you can easily manage your print jobs from outside the office. Combined with the ability to seamlessly share projects between users, it all adds up to a more streamlined, efficient workflow. Learn More
Resources
Case Study
Better Automotive Tooling Solutions
3D printing offers shorter lead times and lighter materials, improving ergonomics of assembly on the Chevrolet Equinox rear wheelhouse hemming.
White Paper
Manufacturing-Ready
Conventional manufacturing continues to evolve, embracing “smart” capabilities involving greater connectivity and flexibility all the way to full-on Industry 4.0 transformations. Additive manufacturing (AM), also known as 3D printing, continues to evolve too, as it capitalizes on opportunities traditional manufacturing technologies can’t exploit due to their inherent limitations.
Get A Free Quote
Talk to an Expert
Our team of application and industry engineers are here to help. We can answer any questions you about range of materials, printing applications, or features of the printer. If we feel there is a more optimal solution that suits your requirements, we will recommend it.
If you’re looking for a company that can help you innovate the way you manufacture & prototype, Objective 3D is the company for you. We offer a wide range of specialised 3D printers, 3D scanners, material and software options to choose from, so you can find the perfect solution for your needs. We work with some of the leading industries in the world, including medical, automotive, and aerospace, so we have a deep understanding of the specific needs and challenges that our clients face. Our team of experienced application engineers are on hand to provide you with the support and guidance you need throughout every stage of your product’s lifecycle.
What sets Objective 3D apart from other companies is our daily use of the technology we promote. Our state-of-the-art service bureau houses 12+ different 3D printing technologies, and we print thousands of parts every year, from small tooling aids, patient specific models, and large industrial parts. This gives us a deep understanding of the capabilities and limitations of each solution, so we can provide you with the best possible option.
Objective 3D provides same-day phone support with a quick response time any day of the year. We can also assist you with overflow of work, machine downtime, and complex supply chain issues, where you tap into our technology on a contract basis, giving you access to our on-demand 24 hour ISO accredited printing facility, equipped with 24 printers, part finishing lab, and in-house team of dedicated application engineers, ready to serve you.
Our mission is to revolutionise the way businesses manufacture today, so you can build a better tomorrow. Contact us today to find out more.
