Form 4B Medical
Blazing Speed Meets Surgical Precision
Fast
4x faster & 30% more build volume
Precise
Accurate prints, every time
Reliable
Unmatched print success
Intuitive
Anyone can learn in 15 minutes
To get the complete Form 4B Medical experience, check out the Form 4B Medical Basic Package or the Form 4B Medical Complete Package
Form 4B Medical
3D Printer

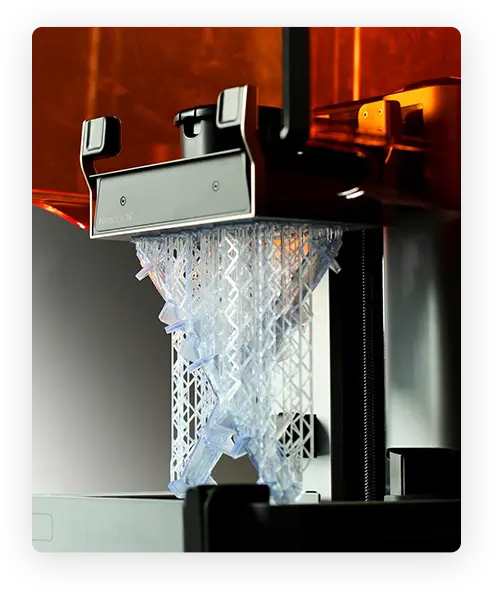

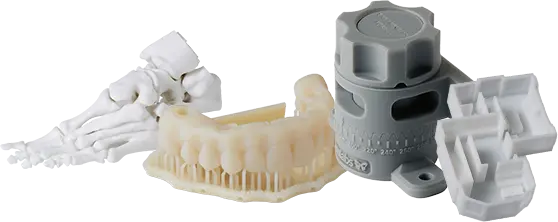

The Form 4B Medical is engineered to meet the rigorous demands of the medical field, offering unparalleled speed and surgical precision in 3D printing. With a build volume 30% larger and printing speeds up to four times faster than previous models, it efficiently produces medical devices such as surgical guides and anatomical models. The printer delivers consistently accurate results across the entire build platform, featuring smooth surfaces and sharp details thanks to its 50 μm pixel size and pre-tuned anti-aliasing. Its user-friendly workflow includes smart auto-orientation and advanced support generation, streamlining the printing process for medical professionals. Moreover, the Form 4B Medical is compatible with a variety of biocompatible materials, ensuring suitability for diverse medical applications.
Introducing
Formlabs Form 4B Medical
Why Formlabs Form 4B Medical
Consistently Accurate
Across the build platform
Smoothest Surfaces
Lower peel forces, light touch supports, and 50 um pixel size with pre-tuned anti-aliasing.
Sharpest Details
Highly collimated light and 50um pixel size with pre-tuned anti-aliasing for subpixel resolution.
Why Choosing The Right 3D Printer Reseller Is Important To Getting It Right?
Formlabs Form 4B Medical
Technical Specifications
 | Formlabs Form 4B Medical |
|---|---|
| Technology | Masked Stereolithography (MSLA) |
| Printer Engine | Low Force Display (LFD)™ |
| Build Volume (W x D x H) | 20.0 × 12.5 × 21.0 cm | 7.9 x 4.9 x 8.3 in | 5.25 liters |
| Layer Thickness (Z Resolution) | 25–200 µm | 0.001–0.008 in |
| XY Resolution | 50 µm with pre-tuned anti-aliasing for subpixel resolution Superior fine feature performance and sharp features compared to the Form 3 Series |
| Average print speed (100um layer height) | 40 mm/hour (1.6 in/hour) across all materials |
| Maximum print speed | 100 mm/hour | 3.9 in/hour |
| Resin Tank lifetime | 75,000+ layers with any Formlabs material |
| Printer weight | 18.3 kg | 40.4 lb |
| Printer dimensions | 39.8 x 36.7 x 55.4 cm | 15.7 x 14.5 x 21.9 in |
| Warranty and service | One year of service warranty included. Extended warranty options are available. |
| PreForm System Requirements | Windows 7 (64-bit only, ARM not supported) and up Mac OS X 10.15 and up OpenGL 2.1 C++ runtime library from Microsoft (Windows only) 4 GB RAM (8 GB recommended) |
| PreForm File Types | STL, OBJ, and 3MF file input FORM file output |
SLA Post Processing
Effortless Post-Processing for Professional-Grade Prints
Achieve consistent, high-quality results with a streamlined post-processing workflow designed for efficiency, ease of use, and reliability.
Automated Cleaning - Form Wash
After printing, parts are automatically cleaned in Form Wash, which effectively removes excess resin while preserving fine details. The selfregulating system prevents over-soaking, delivering clean, ready-to-cure parts with minimal effort.
- Adaptable to Build Platforms
- Improved agitation
- Flexible Solvent Volume
Optimised Curing - Form Cure
Next, Form Cure applies controlled UV light and heat, ensuring parts reach optimal strength, durability, and accuracy. This step enhances material properties, making prints production-ready with a flawless finish.
- Advanced Healing
- Uniform Exposure
- Rapid, High-Intensity Curing
Scalable, Hands Free Production - Form Auto
For high-volume printing, Form Auto enables automated part removal and continuous printing, significantly boosting efficiency while reducing manual abour. Ideal for businesses looking to scale up production with minimal intervention.
- Reduce Part Cost
- 24/7 Printing
- Scale Your Production
Maximise Efficiency With Form 4B Medical Bundle
Unlock the full potential of SLA printing by bundling the Form 4B Medical Series with Form Wash, Form Cure, and Form Auto. This fully integrated post-processing solution ensures your prints are cleaned, cured, and production-ready—with minimal effort.
