Capture small objects or fine detail with precision
Request A Free Quote

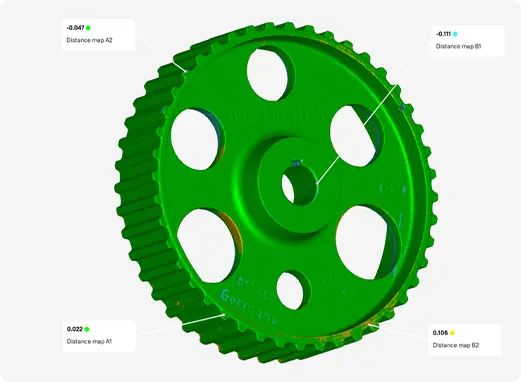

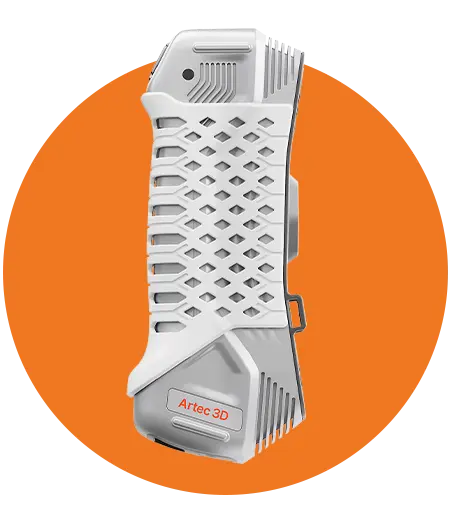

Artec’s first target-based 3D laser scanner introduces ISO-certified, metrology-grade 3D scanning to your workflow. Artec Point rapidly captures complex surfaces – even those featuring black or shiny exteriors – with up to 0.02 mm accuracy for quality control and reverse engineering.

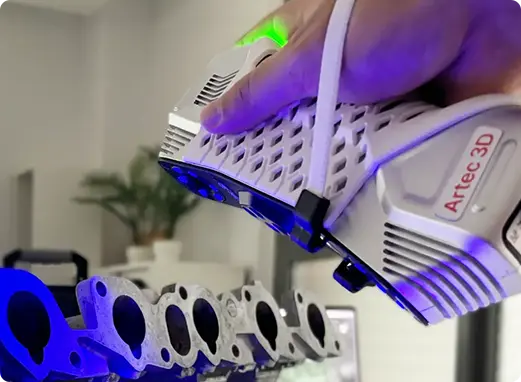

Alternate between grid, parallel, and single-laser modes to maximize results and use HD cameras fixed at a steep viewing angle to capture in narrow areas. With a light yet robust metal chassis, the Artec Point is also versatile for use in demanding industrial environments.
When it comes to capturing intricate objects with high repeatability and pinpoint accuracy, Artec Point always delivers, making it the ideal solution, wherever you need fast, reliable data.
Artec Point captures complex surfaces with incredible accuracy and repeatability, consistently delivering high-quality data for industrial metrology.
Most of Artec Point’s main functions can be carried out with four easy-to-access buttons that users are able to configure for optimal workflow efficiency.
Capture objects at a rate of up to 120 FPS for tracking that stays fully locked onto objects, ensures there are no holes in your data, and makes Artec Point a breeze to use.
Change between three modes for best results – a high-speed grid, parallel lasers for complex geometry capture, and a single laser for obscure geometries like deep holes.
Zoom in to view surfaces up to 8x more closely for complete scan coverage that picks up tiny details that may not be visible upon first glance.
The Artec Point 3D laser scanner features a vast scanning area that allows it to capture larger objects while keeping targets in view for seamless, high-speed 3D scanning.
1 Scan
2 Fuse & Optimise
3 Texturize & Export
| Table Header | Table Header |
|---|---|
|
Resolution & accuracy |
|
|
Resolution, up to |
0.02 mm |
|
Accuracy, up to |
0.02 mm |
|
3D accuracy over distance, up to |
0.015 mm + 0.035 mm/m (0.0006 in + 0.0014 in/ft)
0.015 mm + 0.015 mm/m with Artec Metrology Kit (0.0006 in + 0.0006 in/ft) |
| Table Header | Table Header |
|---|---|
|
Scanning range |
|
|
Size of scanning object/area |
S–L |
|
Working distance |
> 300 mm
|
|
Linear field of view H×W @ furthest range |
Up to 700 × 600 mm |
|
Depth of field |
550 mm
|
| Table Header | Table Header |
|---|---|
|
Speed |
|
|
3D reconstruction rate for real-time fusion, up to |
120 fps |
|
Data acquisition speed, up to |
2.8 mln measurements/s |
| Table Header | Table Header |
|---|---|
|
Scanning modes |
|
|
Ultra-fast scanning |
17 crossed blue lasers |
|
Hyper-fine scanning |
7 parallel blue laser lines |
|
Deep hole scanning |
1 single blue laser line |
| Table Header | Table Header |
|---|---|
|
Hardware |
|
|
Scanner type |
Handheld |
|
Power source |
AC/DC power adapter, 24V |
|
Interface |
USB 3.0 |
|
3D structured-light source |
Class II blue laser (eye-safe) |
|
Dimensions H×D×W |
203 × 80 × 44 mm
|
|
Weight |
0.57 kg/1.3 lbs |
|
Warranty |
1 year |
| Table Header | Table Header |
|---|---|
|
Compatibility |
|
|
Supported OS |
Windows 10, 11 |
|
Recommended computer parameters |
Intel processor with 8 cores, 16 threads, 2.6 GHz and above, 64+ GB RAM, GPU with 8 GB VRAM
|
|
Minimum computer requirements |
Intel processor with 8 cores, 16 threads, 2.6 GHz and above, 32+ GB RAM, GPU with 4 GB VRAM |
| Table Header | Table Header |
|---|---|
|
Output formats |
|
|
3D mesh |
OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
|
CAD |
STEP, IGES, X_T |
|
Measurements |
CSV, DXF, XML |
With metrology-grade accuracy and a lightweight, versatile design, the Artec Point 3D scanner can be applied across industries, but it’s best suited to the following:
Artec Studio 17
Use Artec Studio’s host of CGI tools including full-color 3D scan data, texturizing via photogrammetry, and auto glare removal to create replica 3D models with perfect geometry and color representation.
